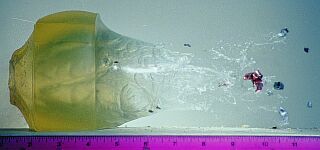

High-Speed photo (1/2,000,000th-second flash duration) of a Quik-Shok bullet exiting 10% ordnance gelatin.



Triton's Premium-Plus Quik-Shok ammunition features a patented, high velocity hollow point bullet developed by Tom Burczynski, inventor of the Hydra-Shok, Starfire and EFMJ bullets.


New For 2002 - 9mm, 357 SIG, .40 S&W and .45 ACP Quik-Shok/Hi-Vel now feature primer pocket and case mouth sealant. .40 Super now features case mouth sealant.


Click for larger image.

Extruded (Hyper-Stressed) QS-2 bullet core (first stage). Perfectly straight channels and small central "hub" area severely weaken the core and guarantee consistent fragmentation.



What sets the Quik-Shok apart from other bullets is that the Quik-Shok is designed to provide controlled core separation on impact. Unlike conventional hollow point designs, during penetration the Quik-Shok bullet expands very rapidly and then splits into three independent segments.  These segments continue to penetrate in three directions over an ever-widening area within the target. This dynamic terminal action results in maximum energy distribution and multiple wound channels.

Quik Shok's ability to rapidly transfer its energy over a large area within a living target provides important advantages. Each sheared segment creates its own temporary cavity, ultimately forming a series of impinging pressure zones which are believed to produce a powerful incapacitating effect. This wide-area trauma results in maximum motor interruption in the shortest period of time.



Click for larger image.

Quik-Shok Manufacturing Stages

From left to right: (1) QS-2 core inserted in jacket. (2) Core partially seated. See how the size and shape of the potential segments are uniformly maintained during compression. (3) Finished Quik-Shok hollow point.

Another advantage derived from the divergent paths taken by the Quik-Shok segments is a much greater increase in the odds of striking or affecting one or more vital organs - even in the event of a poorly placed bullet. Three permanent crush cavities produce maximum hemorrhage due to the greater volume of tissue engaged. Quik-Shok is the ideal choice for law enforcement and personal defense, where near instant incapacitation is critical, while eliminating the risk of over-penetration, at the same time.

Quik-Shok's unique Hyper-Stressed™ bullet technology provieds extreme accuracy and delivers a new level of stopping power, far exceeding that of conventional hollow point ammunition and even pre-fragmented rounds.


Click to view high speed video of Quik Shok impact.
Click on image to view high speed video of Quik Shok impact in ballistic gelatin.

Click for larger image.

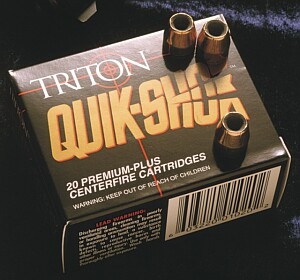

Quik-Shok's cartridge cases are nickel plated for reliable feed and function. Quik-Shok is packaged 20 rounds per box; 500 rounds per case.

BALLISTICS
  Velocity (feet per second)
yds
Energy (foot-pounds)
yds

Product # Caliber Bullet
Weight
Muzzle 25 50 75 100 Muzzle 25  50 75 100 Barrel
Length
TR380QSA .380 ACP +P 90 gr. 1050 1004 965 915 878 220 201 186 167 154 4"
TR9QSA 9mm +P 115 gr. 1325 1233 1157 1099 1050 448 388 341 308 282 4.25"
TR9QSA 9mm +P 135 gr. 1200 1128 1070 1041 1007 432 381 343 325 304 4.25"
TR38QSA .38 Special +P 110 gr. 1175 1115 1065 994 962 337 303 277 241 226 4"
TR357QSA .357 Magnum 125 gr. 1450 1336 1247 1176 1123 583 495 425 384 350 4"
TR357SQSA .357 SIG 115 gr. 1425 1320 1228 1172 1109 518 444 385 350 314 4"
TR357SQSB .357 SIG 135 gr. 1300 1207 1133 1133 1084 507 436 385 385 352 4"
TR40QSA .40 S&W 135 gr. 1325 1215 1130 1065 1012 526 442 382 340 307 4.25"
TR40QSB .40 S&W 155 gr. 1250 1166 1101 1039 1002 538 468 417 372 345 4.25"
TRlOQSA 10MM 155 gr. 1400 1292 1200 1123 1073 674 574 496 434 396 5"
TR40SQSB .40 Super TT 135 gr. 1250 1156 1085 1029 982 468 400 353 317 289 5"
TR40SQSC .40 Super 155 gr. 1500 1325 1178 1218 1150 774 605 478 510 455 5"
TR44QSB .44 Magnum 240 gr. 1285 1220 1164 1139 1102 878 793 722 691 648 4"
TR45QSA .45 ACP +P 165 gr. 1250 1168 1104 1026 979 572 500 446 385 351 5"
TR45QSB .45 ACP +P 230 gr. 950 927 905 884 864 461 439 418 399 381 5"
TR450QSA .450 SMC 165 gr. 1450 1345 1253 1175 1113 770 663 575 506 454 5"
TR450QSB .450 SMC 230 gr. 1150 1105 1066 1032 1002 675 623 580 544 513 5"


PERFORMANCE
Product # Caliber Bullet Weight Depth of Penetration Circle of Dispersion Recovered Weight Firearm
TR9QSA 9mm +P 115 gr. 9.5" 3" 111 Kahr Mk9
TR9QSB 9mm +P 135 gr. 9" 3.8" 128 Kahr Mk9
TR38QSA .38 Spl +P 110 gr. 8.7" 2" 108 S&W 66 4in
TR357QSA .357 Mag 125 gr. 8.75" 4" 124 S&W 66 4in
TR357SQSA .357 Sig 115 gr. 10.25" 3.25" 103 Glock 31
TR357SQSB .357 Sig 135 gr. 10.5" 3.75" 122 Glock 31
TR40QSA .40 S&W 135 gr. 10.25" 3.62" 130 Kahr Mk40
TR40QSB .40S&W 155 gr. 9.8" 4.12" 153 Kahr Mk40
TR10QSA 10mm 155 gr. 11.5" 4.5" 144 Glock 20
TR45QSA .45ACP +P 165 gr. 10.8" 3.8" 159 Glock 30
TR45QSB .45ACP +P 230 gr. 10.12" 3.65" 229 Glock 30
Test Medium: 250 Type A 10% Ordnance Gelatin, calibrated, INS heavy clothing protocol test. Five shot group average.
